PLC Control Systems: The Brain Behind Fully Automatic Brick Making Machine

In the competitive construction materials industry, the difference between average and exceptional brick production comes down to one critical component: the control system. MAIKONG’s Fully Automatic Brick Making Machine stands apart through its advanced PLC (Programmable Logic Controller) technology – the intelligent brain that orchestrates every aspect of the production process with precision and reliability. For South African construction companies and brick manufacturers seeking to maximize efficiency while maintaining consistent quality, understanding how these sophisticated control systems work is essential to making informed equipment investments.

Understanding PLC Control Systems in Fully Automatic Brick Making Machines

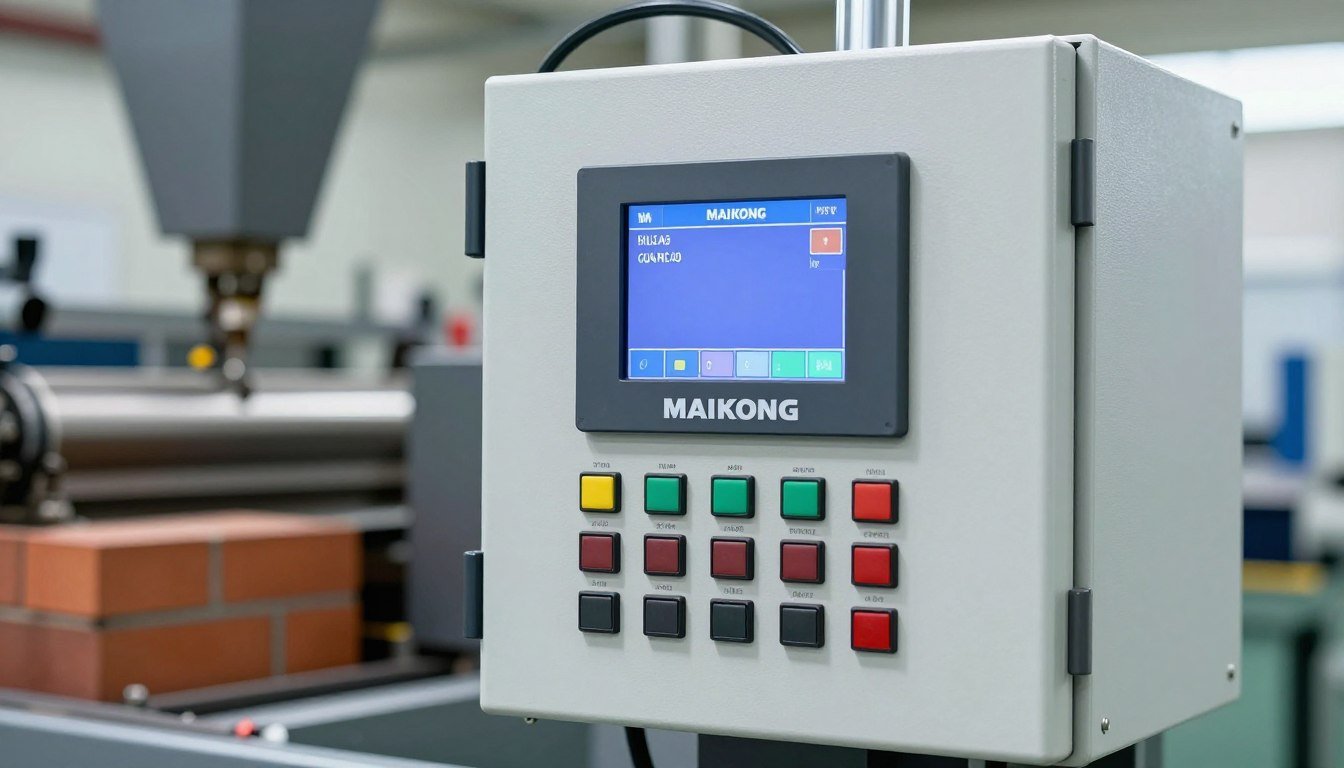

MAIKONG PLC Control Panel for Fully Automatic Brick Making Machine

MAIKONG’s advanced PLC control panel with Mitsubishi components

A Programmable Logic Controller (PLC) is essentially the central nervous system of any modern Automatic Brick Making Machine. Unlike basic control systems that rely on fixed mechanical processes, PLC systems can be programmed, monitored, and adjusted to optimize every stage of brick production.

Core Functions of PLC in Fully Automatic Brick Making Machines

The PLC control system in MAIKONG machines manages several critical functions simultaneously:

Precise material batching and mixing ratios
Vibration frequency and amplitude control
Hydraulic pressure optimization
Automated pallet handling
Production cycle timing and synchronization
Real-time error detection and correction
Production data collection and reporting

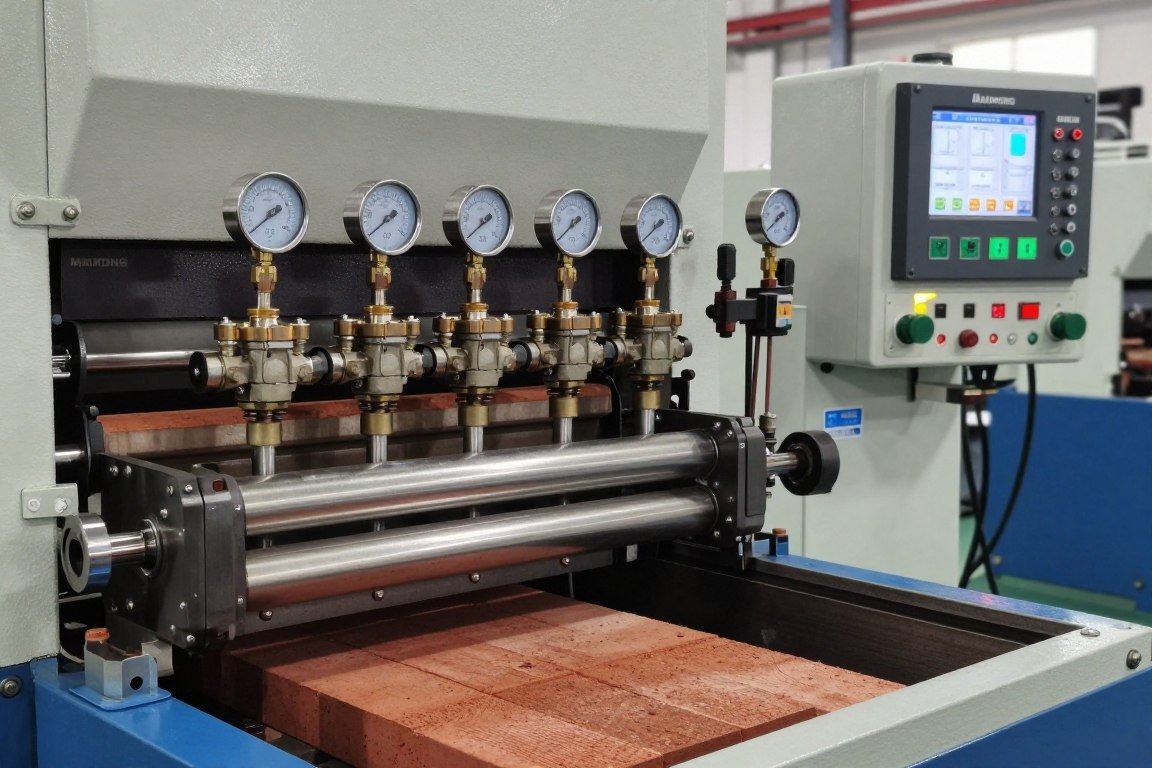

PLC system controlling hydraulic components of a Fully Automatic Brick Making Machine

Need Technical Guidance on PLC Systems?

Our engineers are available to explain how MAIKONG’s PLC technology can optimize your brick production.

WhatsApp Technical Support

Key Benefits of PLC-Controlled Fully Automatic Brick Making Machines

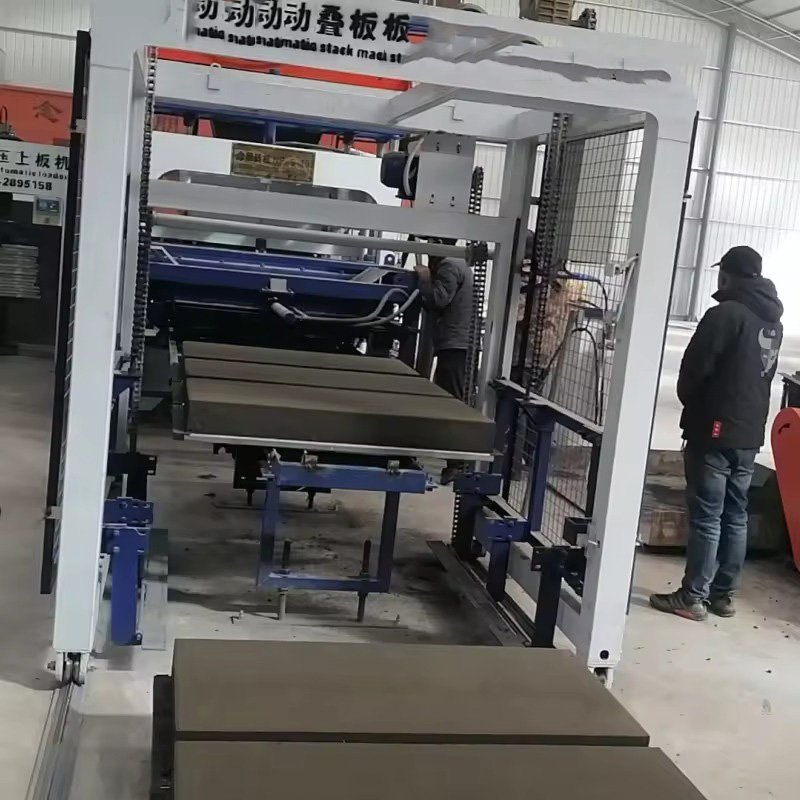

MAIKONG Fully Automatic Brick Making Machine

Enhanced Precision

MAIKONG’s PLC systems maintain consistent parameters throughout production, ensuring uniform brick quality with precise dimensions and density. This reduces waste and improves the structural integrity of the final product.

Increased Productivity

Automated cycle optimization reduces production time while maximizing output. Our Fully Automatic Brick Making Machines can produce up to 12,000 bricks per 8-hour shift, significantly outperforming manual systems.

Reduced Labor Costs

With PLC automation handling the complex production processes, MAIKONG machines require minimal operator intervention. This allows your workforce to focus on quality control and other value-adding activities.

Material Optimization

The PLC system precisely controls material usage, ensuring optimal mix ratios and reducing waste. This translates to significant cost savings over the machine’s operational lifetime.

Adaptability

MAIKONG’s PLC systems can be quickly reprogrammed to produce different brick types and sizes by simply changing the mold and adjusting parameters through the control panel.

Diagnostic Capabilities

Built-in error detection and reporting functions allow for quick troubleshooting and maintenance, minimizing downtime and extending equipment lifespan.

PLC interface of MAIKONG Fully Automatic Brick Making Machine

MAIKONG’s user-friendly PLC interface with real-time production monitoring

MAIKONG’s Premium PLC Technology

At MAIKONG, we understand that the control system is the heart of any Fully Automatic Brick Making Machine. That’s why we invest in world-class components and engineering expertise to deliver superior performance and reliability.

Premium Components in Every Machine

Mitsubishi PLC Controllers – Industry-leading reliability and processing power
Schneider Electric Thermal Protection – Advanced safeguards for critical components
ABB Switches – Precision control with extended operational life
SIEMENS Motors – German-engineered for consistent performance
High-quality Hydraulic Valves – For rapid, precise movement control

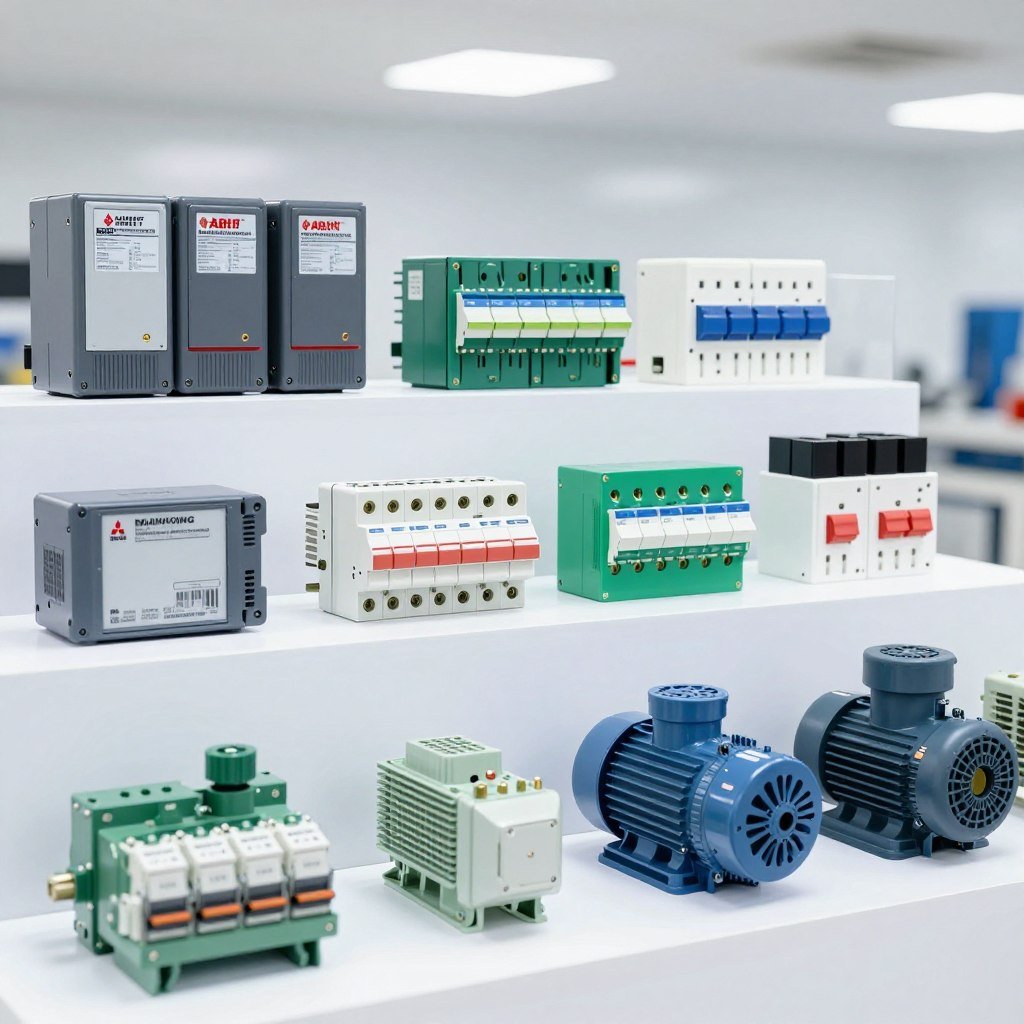

Premium electrical components used in MAIKONG Fully Automatic Brick Making Machine

The difference between an average brick machine and a superior one often comes down to the quality of the control system. MAIKONG’s investment in premium PLC technology ensures consistent production quality and reduced maintenance costs over the machine’s lifetime.

– MAIKONG Engineering Team

Request Technical Specifications

Get detailed information about our PLC control systems and how they can optimize your brick production.

Download Technical Brochure

How PLC Orchestrates the Production Process

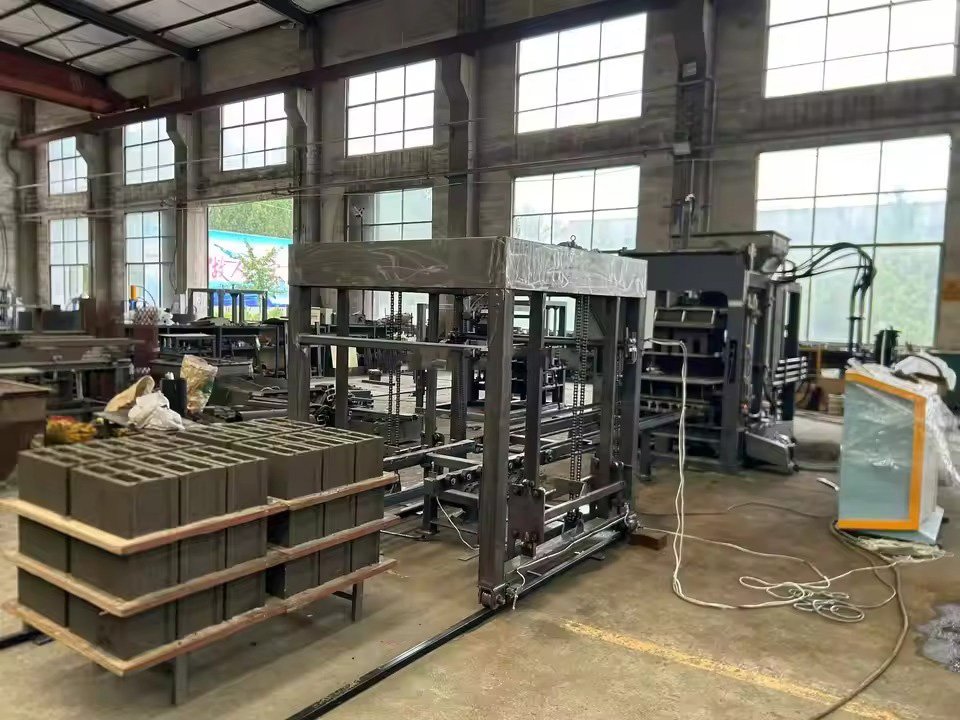

MAIKONG Fully Automatic Brick Making Machine

MAIKONG’s fully integrated brick production line controlled by advanced PLC systems

The PLC control system in MAIKONG’s Fully Automatic Brick Making Machine coordinates a complex sequence of operations with precision timing. Here’s how the process unfolds:

Material Batching and Preparation

The PLC system controls the precise measurement of raw materials (cement, sand, fly ash, etc.) according to programmed recipes. This ensures consistent mix quality for every batch.
Mixing Process

After batching, materials are transferred to the mixer where the PLC controls mixing time, speed, and water addition to achieve optimal consistency. MAIKONG’s JD500 Pan Mixer with 7.5kW power ensures thorough mixing.
Block Forming

The mixed material is transferred to the mold case where the PLC coordinates a precise sequence of vibration and hydraulic pressure. This dual-action forming process creates dense, consistent bricks with superior structural integrity.
Automatic Stacking

Freshly formed bricks are automatically transferred to pallets and stacked according to programmed patterns. The PLC ensures precise movement and placement to prevent damage to the green bricks.
Curing Management

While curing typically occurs off-machine, MAIKONG’s PLC systems can be integrated with curing chamber controls to maintain optimal temperature and humidity conditions for brick curing.

Did you know? MAIKONG’s PLC systems can store multiple production recipes, allowing you to quickly switch between different brick types, sizes, and material compositions with minimal downtime.

Technical Specifications of MAIKONG Fully Automatic Brick Making Machine

Specification	Details
Machine Type	Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
Raw Materials	Cement, Sand, Fly ash, Stone, Construction waste
Production Capacity	720-960 blocks/hour (400×200×200mm hollow blocks)
Brick Sizes	400×100×200mm, 400×120×200mm, 200×200×60mm, 400×200×200mm (Custom sizes available)
Moulding Period	15-20 seconds per cycle
Vibration Force	30-50kN
Power Requirements	220V/380V/415V (Customizable)
Machine Weight	4500kg
Dimensions (L×W×H)	1350×1460×1800mm
Warranty	1 Year (Extended warranty available)

Technical diagram of MAIKONG Fully Automatic Brick Making Machine

Technical diagram of MAIKONG QT4-15 Fully Automatic Brick Making Machine

Recommended Raw Material Ratios

Standard Mix

8-10% cement
30-40% sand
50-60% crushed stone

Alternative Mix (with Fly Ash)

8-10% cement
30% fly ash
60% sand or stone powder

Material Flexibility: MAIKONG’s Fully Automatic Brick Making Machines can process a wide range of materials, including industrial waste products like fly ash, slag, and construction waste. This supports sustainable manufacturing practices while reducing raw material costs.

MAIKONG’s Quality Assurance

MAIKONG’s commitment to quality extends throughout our manufacturing process. Our Fully Automatic Brick Making Machines are built to ISO9001, CE, and SGS certification standards, ensuring compliance with international quality benchmarks.

Manufacturing Excellence

Our specialized workshops in GD, SZ focus on specific aspects of production:

Material cutting workshop with precision equipment
Welding and heat treatment workshop for structural integrity
Assembly workshop with quality control checkpoints
Commissioning and debugging workshop for pre-delivery testing

Component Quality

We use only premium materials and components:

GB Q235 steel for structural components
Carburizing heat treatment for molds (54-58 HRC hardness)
100,000+ cycle mold lifespan
Advanced arc welding and carbon dioxide welding
Wire-electrode cutting for precision components

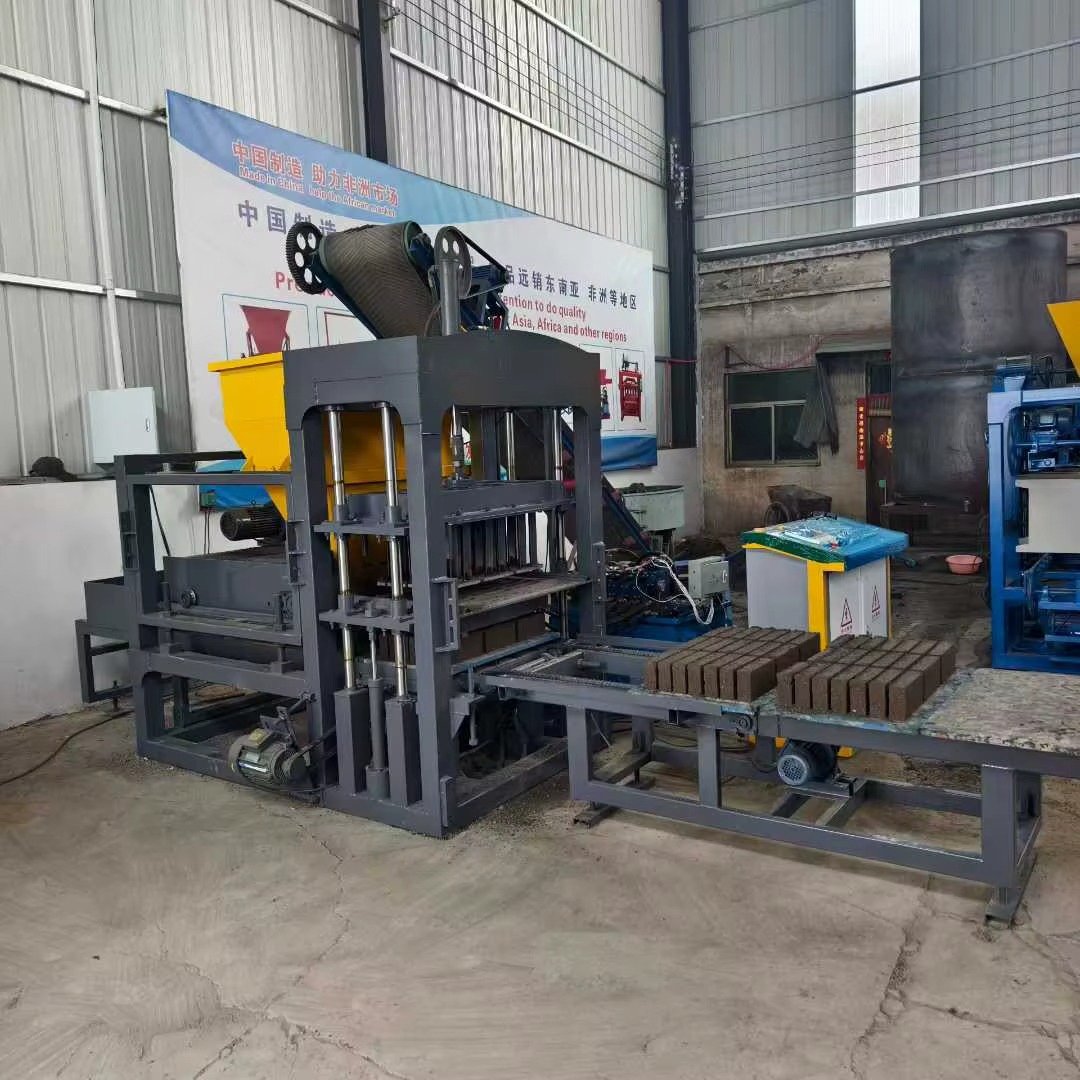

MAIKONG Fully Automatic Brick Making Machine

MAIKONG’s state-of-the-art manufacturing facility in GD, SZ

Comprehensive Support for Your Brick Production

Pre-Sale Support

Professional consultation on raw material formulations
Machine selection guidance based on production needs
Factory layout planning assistance
Feasibility analysis for production lines
24-hour online technical consultation

Request Consultation

Installation & Training

On-site machine installation and setup
Comprehensive operator training
Production optimization guidance
Quality control procedures
Maintenance and troubleshooting training

Schedule Installation

After-Sale Support

1-year warranty on all machines
Lifetime technical support
Rapid response to service requests
Genuine spare parts availability
Regular check-ins and production optimization

Contact Technical Support

MAIKONG technical support team assisting with Fully Automatic Brick Making Machine

Free Material Testing: Not sure if your local materials are suitable for brick production? Send us samples, and our laboratory will test them free of charge, providing you with optimal mix formulations for your specific materials.

Why Choose MAIKONG Fully Automatic Brick Making Machines

MAIKONG Advantages

Industry-leading PLC control systems for superior automation
Premium components from global brands (Mitsubishi, Schneider, ABB, SIEMENS)
Versatile production capabilities for multiple brick types and sizes
High production capacity (up to 12,000 bricks per 8-hour shift)
Reduced labor costs through comprehensive automation
Energy-efficient operation with optimized power consumption
Comprehensive technical support and training
ISO9001/CE/SGS certified manufacturing

MAIKONG’s Fully Automatic Brick Making Machines represent the perfect balance of advanced technology, robust construction, and user-friendly operation. Our PLC control systems ensure consistent quality, maximum efficiency, and minimal downtime – delivering the productivity and reliability that South African construction businesses demand.

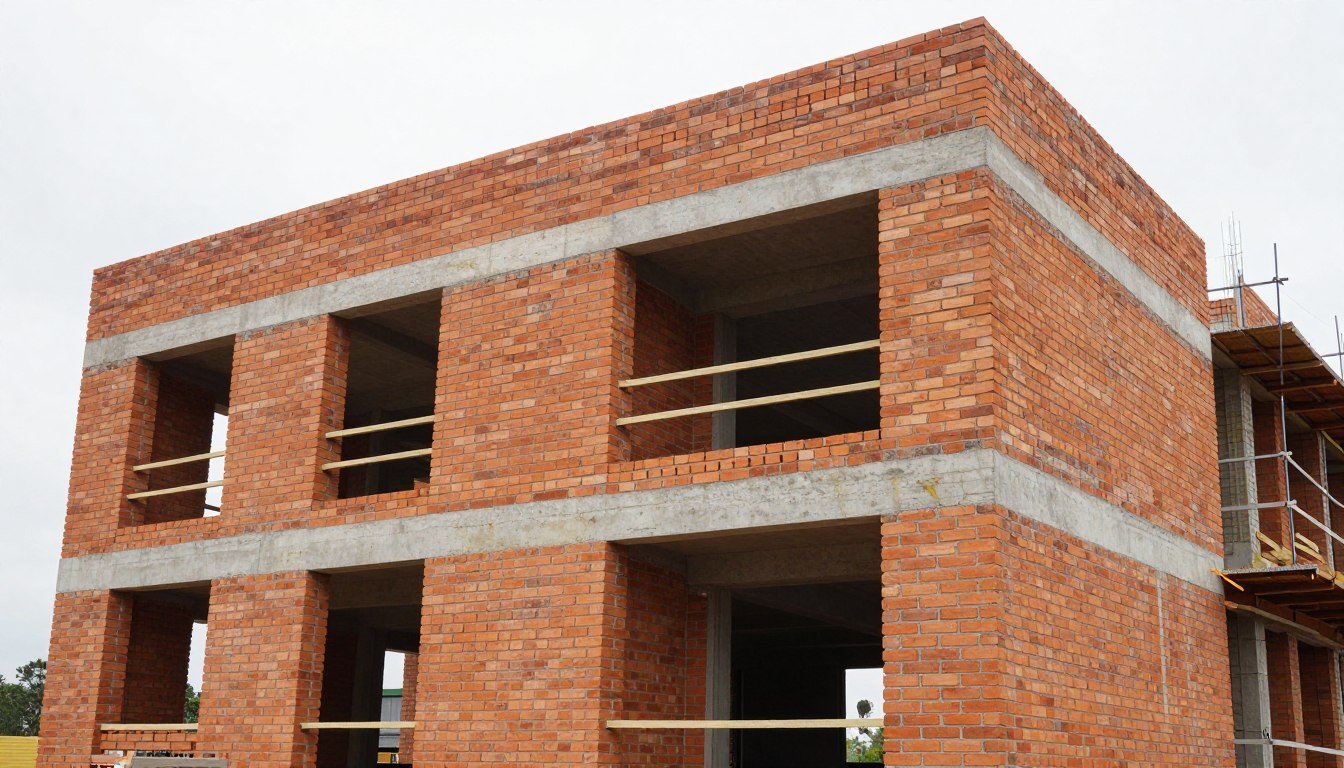

Completed construction project using bricks from MAIKONG Fully Automatic Brick Making Machine

High-quality construction project completed with bricks from MAIKONG machines
