Automatic Brick Making Machine: Advanced Solutions for South African Construction Industry
The construction industry in South Africa demands reliable, efficient, and cost-effective brick production solutions. MAIKONG’s range of automatic brick making machines delivers exceptional performance, durability, and value for businesses across South Africa. As a leading Chinese manufacturer with cutting-edge technology and superior supply chain integration, we provide customized brick production solutions that meet the unique requirements of the South African market.
What is an Automatic Brick Making Machine?

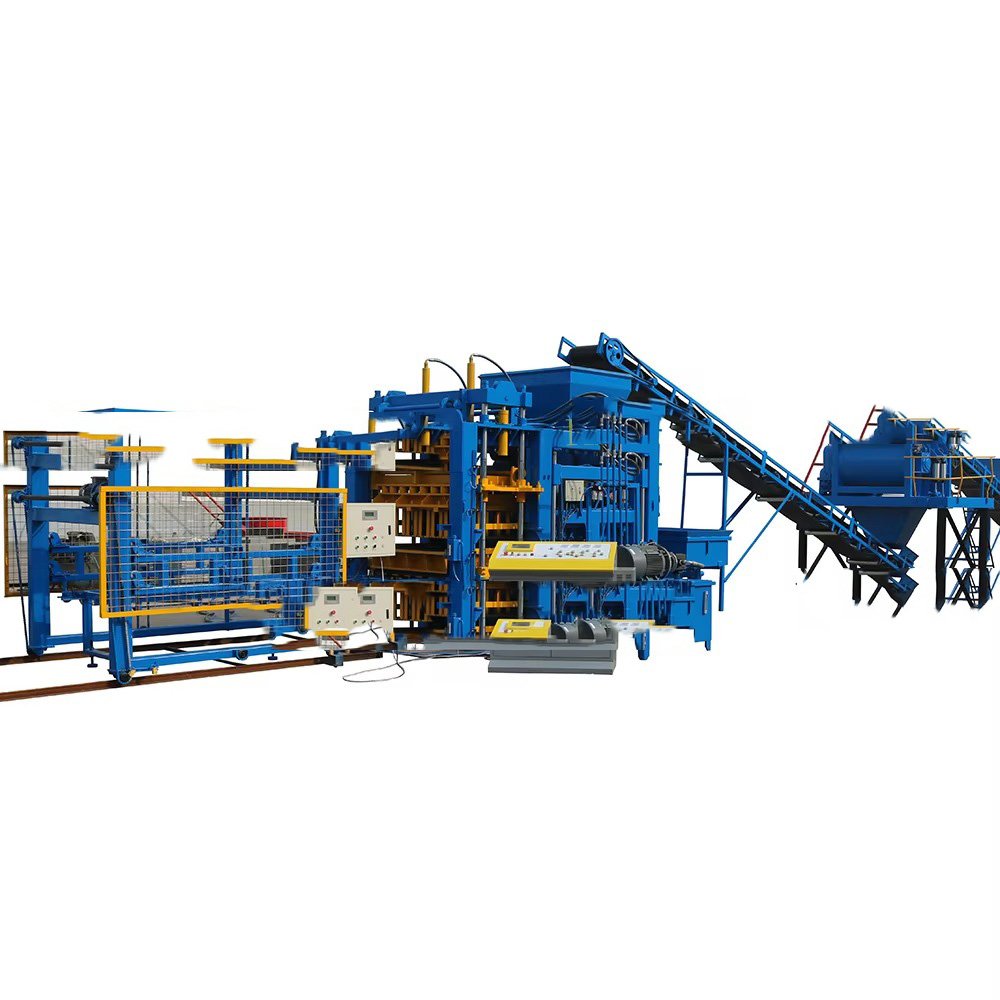

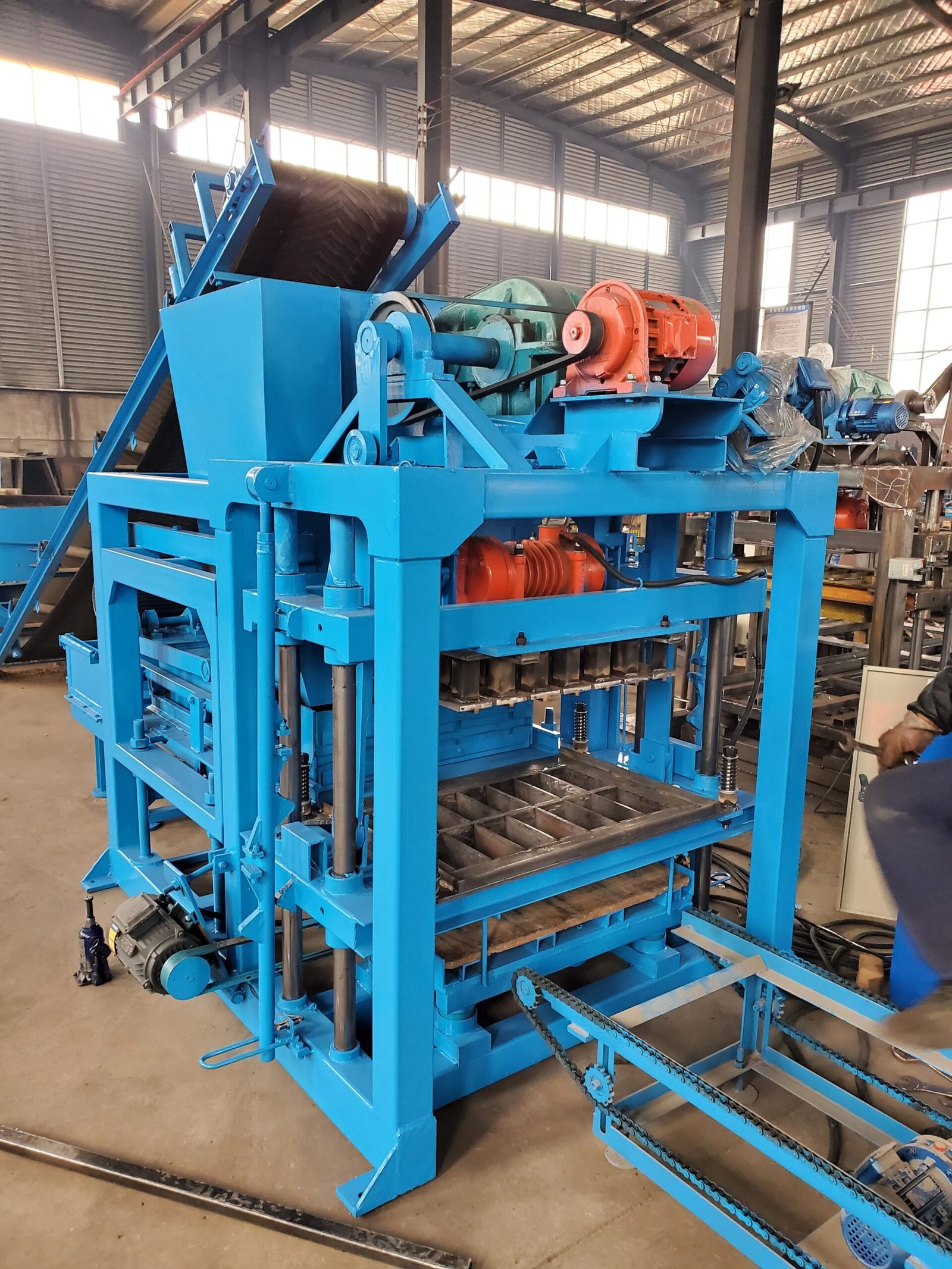

MAIKONG QT10-15 Fully Automatic Brick Making Machine with 60,000 bricks daily capacity www.ibrickmakingmachine.co.za
An automatic brick making machine is an advanced manufacturing system that produces bricks with minimal human intervention. Unlike manual or semi-automatic alternatives, these machines handle the entire brick production process—from material mixing and molding to curing and stacking—with precision automation.
The core components of an automatic brick machine include:
- Automated material feeding system
- Precise mixing and batching unit
- Hydraulic pressing mechanism
- PLC control system for operation management
- Automated brick transfer and stacking system
MAIKONG’s automatic brick making machines for sale in South Africa represent the pinnacle of brick production technology, offering unmatched efficiency, consistency, and production capacity for businesses of all sizes.
Automatic vs. Semi-Automatic vs. Manual Brick Making Machines
| Feature |
Manual Machine |
Semi-Automatic Machine |
Automatic Machine |
| Production Capacity |
500-1,500 bricks/day |
5,000-15,000 bricks/day |
20,000-60,000+ bricks/day |
| Labor Requirements |
5-8 workers |
3-5 workers |
1-3 workers |
| Quality Consistency |
Variable |
Good |
Excellent |
| Initial Investment |
Low |
Medium |
High |
| Operating Cost |
High (labor-intensive) |
Medium |
Low (per brick) |
| Brick Types |
Limited variety |
Moderate variety |
Wide variety with mold changes |
While semi-automatic brick making machines offer a middle ground, fully automatic brick machines provide the highest return on investment for medium to large-scale operations in South Africa’s competitive construction market.
Why Choose MAIKONG Automatic Brick Making Machines?
MAIKONG’s state-of-the-art manufacturing facility in Shenzhen, China www.ibrickmakingmachine.co.za
Superior Chinese Supply Chain
MAIKONG leverages China’s advanced manufacturing ecosystem to source premium components at competitive prices. Our strategic partnerships with top-tier suppliers ensure consistent quality and reliability in every automatic brick making machine we produce.
Advanced Production Equipment
Our factory utilizes cutting-edge CNC machining centers, robotic welding systems, and precision testing equipment to manufacture brick machines that meet international quality standards while maintaining cost-effectiveness.
Customization Capabilities
Unlike many competitors, MAIKONG offers extensive customization options for our automatic brick machines. We can adapt designs to accommodate specific raw materials available in South Africa, power supply conditions, and production requirements.
Comprehensive After-Sales Support
Every automatic brick making machine for sale in South Africa comes with dedicated technical support via WhatsApp, detailed operation manuals, video tutorials, and spare parts availability to ensure smooth, uninterrupted operation.
MAIKONG Automatic Brick Making Machine Models
Our range of automatic brick making machines is designed to meet diverse production needs across South Africa’s construction industry. From smaller operations to large-scale manufacturing facilities, we have the perfect solution for your brick production requirements.
QT4-15 Automatic Brick Making Machine
Our entry-level automatic brick machine designed for small to medium businesses. This versatile machine delivers excellent performance while maintaining affordability.
- Production capacity: 15,000-20,000 bricks per 8-hour shift
- Power requirement: 22kW
- Brick types: Standard blocks, hollow blocks, pavers
- Ideal for: Construction companies, small commercial brick yards
- Cycle time: 15-18 seconds
QT6-15 Automatic Brick Making Machine
Our mid-range automatic brick making machine offering enhanced production capacity and versatility for medium-sized operations.
- Production capacity: 25,000-30,000 bricks per 8-hour shift
- Power requirement: 37kW
- Brick types: Standard blocks, hollow blocks, pavers, curbstones
- Ideal for: Medium commercial brick yards, construction companies
- Cycle time: 12-15 seconds
QT10-15 High-Capacity Automatic Brick Making Machine
Our flagship automatic brick making machine designed for large-scale production facilities requiring maximum output and efficiency.
- Production capacity: 45,000-60,000 bricks per 8-hour shift
- Power requirement: 65kW
- Brick types: All standard and custom brick types with mold changes
- Ideal for: Large commercial brick yards, RDP housing projects
- Cycle time: 8-10 seconds
Key Features of MAIKONG Automatic Brick Making Machines

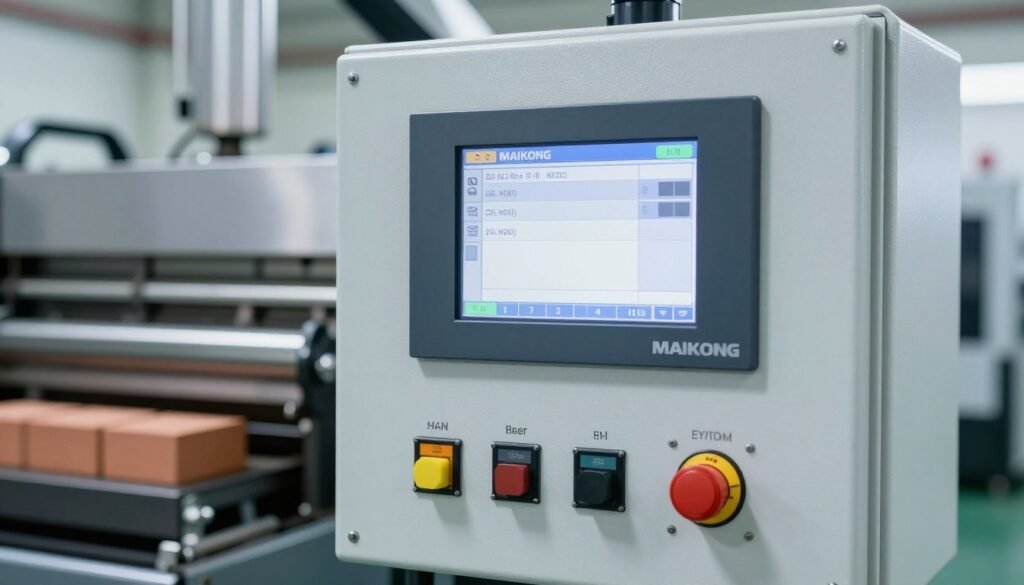

Advanced PLC control system on MAIKONG automatic brick machine www.ibrickmakingmachine.co.za
PLC Control System
Our automatic brick machines feature advanced programmable logic controllers that automate the entire production process. The intuitive interface allows operators to monitor performance, adjust parameters, and troubleshoot issues with minimal training.
Hydraulic System
MAIKONG machines utilize high-pressure hydraulic systems with precision valves to ensure consistent brick density and strength. The system is designed for durability in South Africa’s demanding operating conditions.
Vibration Technology
Our proprietary vibration system ensures optimal material compaction, resulting in bricks with superior strength and dimensional accuracy. This technology significantly reduces material waste and improves product quality.
Quick-Change Mold System
Switch between different brick types in under 30 minutes with our innovative mold change system. This versatility allows producers to respond quickly to market demands without significant downtime.
Energy Efficiency
Our automatic brick making machines incorporate energy-saving technologies that reduce power consumption by up to 30% compared to comparable models, resulting in lower operating costs and environmental impact.
Dust Reduction System
Integrated dust collection and suppression systems create a cleaner working environment, reduce maintenance requirements, and extend the service life of critical components.
Need Technical Specifications?
Our technical team is ready to provide detailed information about our automatic brick making machines tailored to your production requirements.
Contact Technical Support
Call us: +86 13510907401
Applications of Automatic Brick Making Machines in South Africa

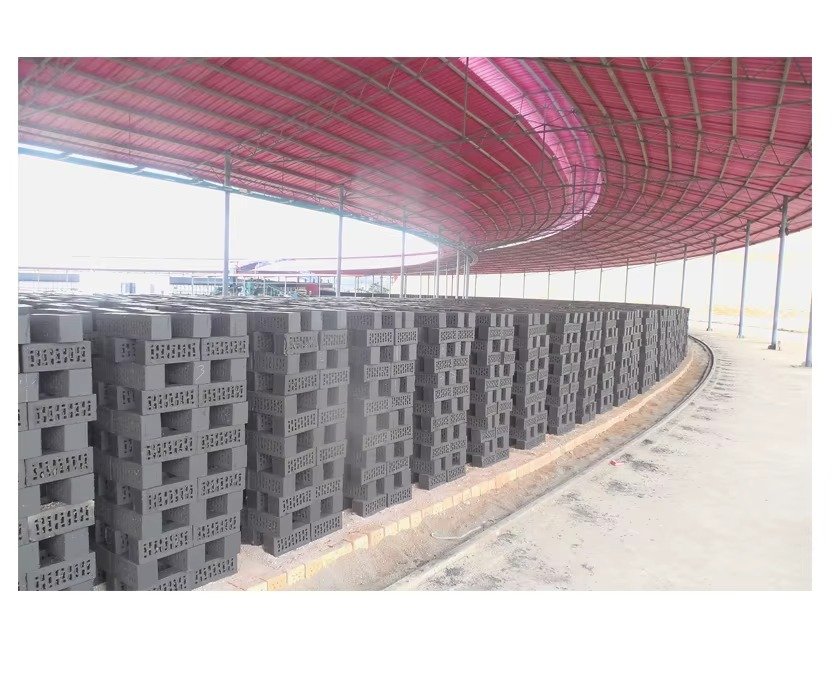

Diverse brick types produced by MAIKONG automatic brick machines www.ibrickmakingmachine.co.za
MAIKONG automatic brick making machines are versatile production systems capable of manufacturing a wide range of construction materials to meet South Africa’s diverse building needs.
Brick Types Produced

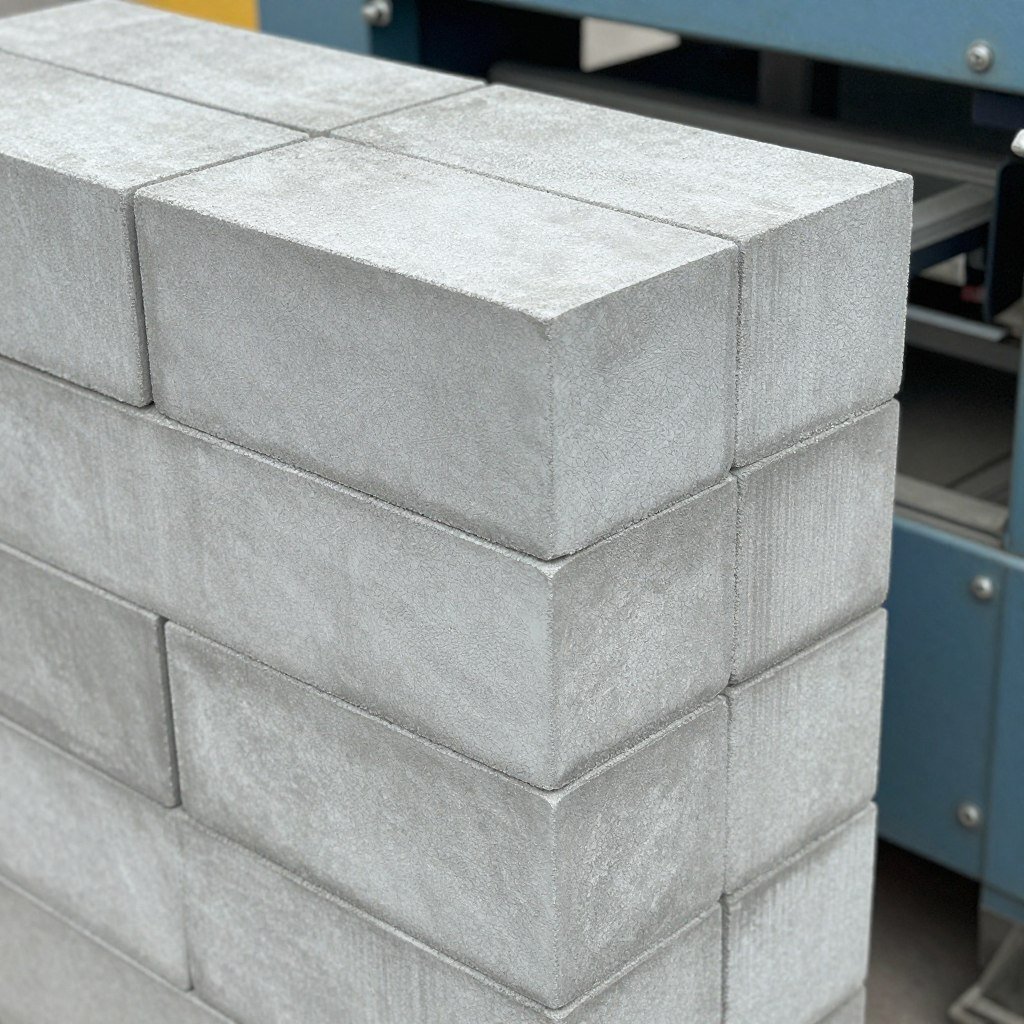

Standard Concrete Blocks
Ideal for general construction, our machines produce standard blocks in various sizes that meet SABS requirements for structural applications.

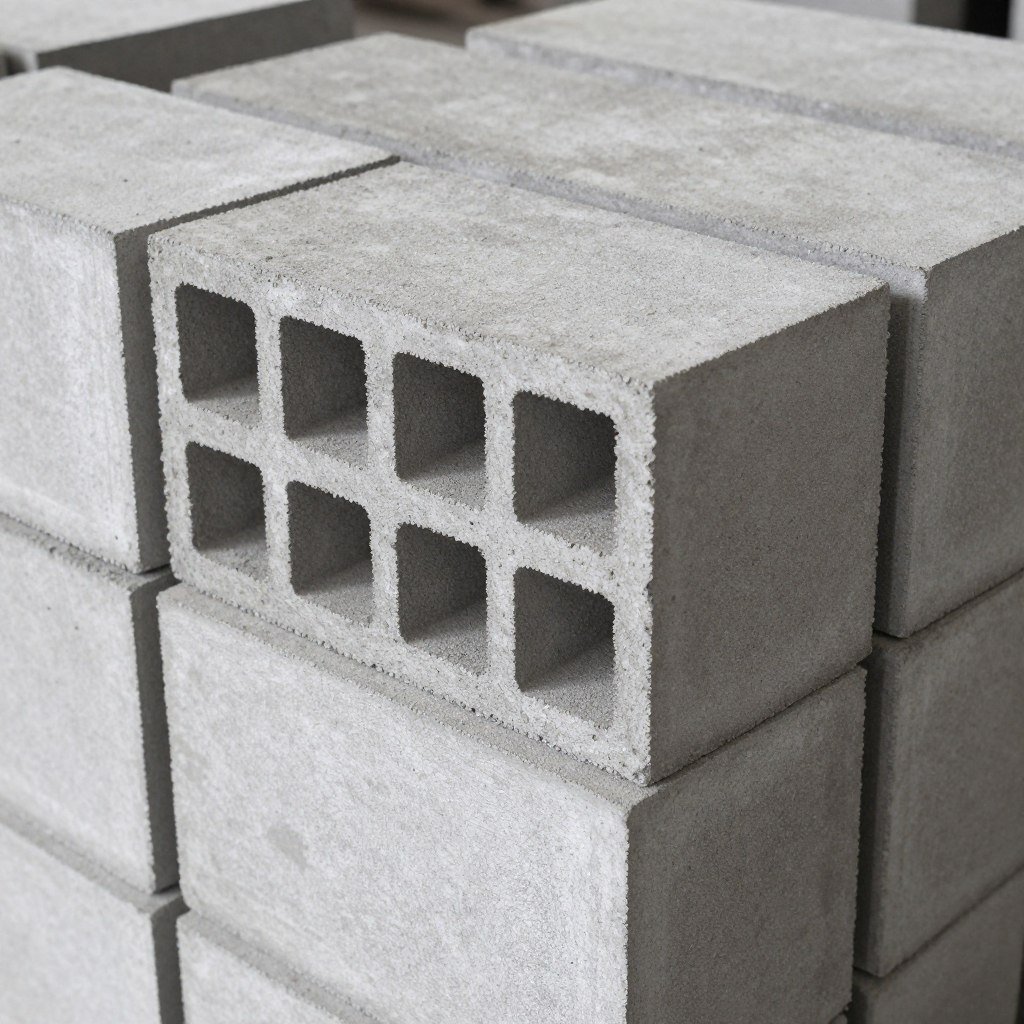

Hollow Blocks
Lightweight yet strong hollow blocks that provide excellent thermal insulation and reduce material costs for large construction projects.
Interlocking Pavers
Decorative and functional pavers for driveways, walkways, and commercial spaces with excellent load-bearing capacity.
Market Segments Served
Commercial Brick Yards
- High-volume production capabilities
- Multiple brick types from one machine
- Low per-unit production costs
- Consistent quality for wholesale distribution
RDP Housing Projects
- SABS-compliant block production
- On-site manufacturing capabilities
- High output for large-scale developments
- Cost-effective construction solutions
Construction Companies
- Mobile production capabilities
- Reduced transportation costs
- Just-in-time manufacturing
- Customization for project requirements
Technical Specifications
Technical diagram of QT6-15 Automatic Brick Making Machine www.ibrickmakingmachine.co.za
| Specification |
QT4-15 |
QT6-15 |
QT10-15 |
| Production Capacity (8hr) |
15,000-20,000 pcs |
25,000-30,000 pcs |
45,000-60,000 pcs |
| Cycle Time |
15-18 seconds |
12-15 seconds |
8-10 seconds |
| Pallet Size |
850×550 mm |
1000×600 mm |
1300×650 mm |
| Power Requirement |
22 kW |
37 kW |
65 kW |
| Machine Weight |
6,000 kg |
9,500 kg |
16,000 kg |
| Machine Dimensions |
4.2×1.8×2.4 m |
6.5×2.1×2.8 m |
9.0×2.4×3.2 m |
| Mold Changing Time |
30 minutes |
25 minutes |
20 minutes |
| Control System |
PLC |
PLC with HMI |
Advanced PLC with touchscreen |
All MAIKONG automatic brick machines are designed to operate in South Africa’s climate conditions and can be adapted for local power supply requirements. Our technical team can provide detailed specifications based on your specific production needs.
Return on Investment Analysis
ROI analysis for QT6-15 Automatic Brick Making Machine investment www.ibrickmakingmachine.co.za
Investing in a MAIKONG automatic brick making machine delivers significant financial benefits for South African businesses. Our comprehensive ROI analysis demonstrates how quickly our machines can pay for themselves through increased production capacity, reduced labor costs, and improved product quality.
Cost Comparison: Manual vs. Automatic Production
| Production Factor |
Manual Production |
Automatic Production |
Savings |
| Daily Output (8hr) |
1,500 bricks |
30,000 bricks |
20x increase |
| Labor Requirements |
8 workers |
3 workers |
62.5% reduction |
| Production Cost Per Brick |
R1.80 |
R0.65 |
64% reduction |
| Reject Rate |
8-12% |
1-2% |
80% reduction |
| Monthly Profit Potential |
R45,000 |
R450,000 |
10x increase |
Typical Payback Period
Based on current market conditions in South Africa, most businesses achieve complete return on investment within:
- QT4-15 Model: 8-12 months
- QT6-15 Model: 10-14 months
- QT10-15 Model: 12-18 months
Factors affecting ROI include production volume, local material costs, labor rates, and market pricing for finished bricks. Our sales team can provide a customized ROI analysis for your specific business scenario.
Installation, Training, and After-Sales Support
MAIKONG technician providing on-site training in South Africa www.ibrickmakingmachine.co.za
MAIKONG is committed to ensuring your automatic brick making machine operates at peak efficiency throughout its service life. Our comprehensive support package includes:
Installation Support
- Detailed foundation and site preparation guidelines
- Remote installation supervision via video call
- Optional on-site installation service by MAIKONG technicians
- Comprehensive installation manual with step-by-step instructions
Operator Training
- Video-based training materials for all machine functions
- Remote training sessions with MAIKONG technicians
- Comprehensive operation manual in English
- Ongoing technical support for new operators
Technical Support
- 24/7 WhatsApp technical assistance
- Troubleshooting guides for common issues
- Remote diagnostics via video call
- Software updates for PLC control systems
Spare Parts
- Essential spare parts package included with machine
- Fast shipping of replacement components
- Detailed parts catalog with ordering information
- Genuine MAIKONG parts with warranty coverage
WhatsApp Technical Support: Our dedicated technical team is available via WhatsApp for immediate assistance with any operational questions or troubleshooting needs. Add our technical support: +86 13510907401
How to Order Your MAIKONG Automatic Brick Making Machine
MAIKONG QT6-15 being prepared for shipping to Durban, South Africa www.ibrickmakingmachine.co.za
Ordering your automatic brick making machine from MAIKONG is a straightforward process designed to ensure you receive the perfect equipment for your production needs.
- Initial Consultation – Contact our sales team to discuss your production requirements, including daily capacity needs, brick types, available space, and budget considerations.
- Technical Proposal – Receive a detailed technical proposal with recommended machine specifications, layout requirements, and production capabilities tailored to your needs.
- Quotation and Terms – Review our comprehensive quotation including machine price, shipping costs, payment terms, and delivery timeline.
- Order Confirmation – Place your order with a deposit payment to initiate production of your custom machine.
- Manufacturing and Testing – Your machine is built to specification and undergoes rigorous testing at our factory before approval for shipping.
- Shipping and Delivery – We handle all logistics to deliver your machine to your facility in South Africa, including necessary documentation for customs clearance.
- Installation and Training – Receive installation guidance and comprehensive operator training to ensure optimal performance from day one.
Customization Options (OEM)
MAIKONG offers extensive customization options for our automatic brick machines to meet specific production requirements:
- Custom mold designs for specialized brick shapes
- Production line integration with existing equipment
- Specialized material handling systems
- Custom control systems and automation levels
- Branding options with your company logo and colors
Visit our OEM page for more information about customization options.
Frequently Asked Questions
What types of bricks can MAIKONG automatic brick machines produce?
MAIKONG automatic brick making machines can produce a wide variety of brick types by changing the molds, including standard solid blocks, hollow blocks, interlocking pavers, curbstones, and specialty shapes. Our machines can work with various raw materials including concrete, cement, fly ash, and clay mixtures to produce bricks that meet South African building standards.
How long does it take to receive an automatic brick making machine in South Africa?
Typical delivery time for a MAIKONG automatic brick machine to South Africa is 30-45 days from order confirmation. This includes 15-25 days for manufacturing and testing, plus 15-20 days for shipping to major South African ports like Durban or Cape Town. Custom machines may require additional production time.
What power supply is required for MAIKONG automatic brick making machines?
Our automatic brick making machines are available in configurations compatible with South Africa’s 380V/50Hz three-phase power supply. For areas with unstable power supply, we can provide recommendations for appropriate generators or include voltage stabilization systems with the machine.
How many operators are needed to run a MAIKONG automatic brick machine?
Depending on the model, MAIKONG automatic brick making machines require 1-3 operators for full production. The QT4-15 typically needs 2-3 operators, while the larger QT10-15 can operate efficiently with just 1-2 skilled operators plus material handling staff.
What warranty coverage is provided with MAIKONG machines?
All MAIKONG automatic brick making machines come with a 12-month warranty covering manufacturing defects and component failures under normal operating conditions. Extended warranty options are available. We maintain spare parts inventory to ensure quick resolution of any issues.
Conclusion
MAIKONG automatic brick making machines represent the perfect combination of advanced technology, durability, and cost-effectiveness for South Africa’s construction industry. With our commitment to quality manufacturing, comprehensive support, and customization capabilities, we provide brick production solutions that deliver exceptional return on investment.
Whether you’re a commercial brick yard looking to increase production capacity, a construction company seeking on-site manufacturing capabilities, or a government contractor working on RDP housing projects, MAIKONG has the perfect automatic brick machine solution for your needs.
