Automatic Brick Production Line: Complete Solutions for South African Construction Industry
What is an Automatic Brick Production Line?
An automatic brick production line is an integrated manufacturing system that transforms raw materials into finished bricks with minimal human intervention. Unlike manual or semi-automatic alternatives, these systems handle the entire production process—from material preparation to final packaging—through sophisticated automation technology.
Core Components of a Modern Brick Production Line
- Raw material handling and preparation system
- Precision batching and mixing equipment
- Advanced hydraulic pressing mechanisms
- Automated conveyor and transfer systems
- PLC control systems with touchscreen interfaces
- Curing chambers with climate control
- Quality inspection and packaging stations
Ready to Upgrade Your Brick Production Capacity?
Our technical team is available to discuss your specific production requirements and provide a customized solution.
The Complete Brick Production Process
MAIKONG’s automatic brick production lines follow a systematic workflow designed for maximum efficiency and consistent quality. Understanding each stage helps you appreciate the value of full automation in brick manufacturing.
Step-by-Step Production Workflow
- Raw Material Preparation – Crushing, screening, and proportioning of clay, cement, fly ash, or other materials
- Batching and Mixing – Precise measurement and thorough blending of materials with water and additives
- Molding and Forming – Hydraulic pressing of material mixture into molds with precise pressure control
- Brick Transfer – Automated handling systems move formed bricks to curing areas
- Curing Process – Climate-controlled environments optimize brick hardening and strength development
- Quality Inspection – Automated systems check dimensions, density, and appearance
- Packaging and Storage – Finished products are stacked, wrapped, and prepared for distribution
Clay Brick Production Line Specifications
Our clay brick production lines are engineered specifically for South Africa’s rich clay resources. These systems produce high-quality fired clay bricks that meet local building standards while maximizing energy efficiency.
| Model | Production Capacity | Brick Dimensions | Power Requirement | Space Required |
| MK-CBL-5000 | 5,000-8,000 bricks/hour | 222×106×73mm (standard) | 180-220 kW | 5,000-6,000 m² |
| MK-CBL-10000 | 10,000-15,000 bricks/hour | 222×106×73mm (standard) | 280-320 kW | 8,000-10,000 m² |
| MK-CBL-20000 | 20,000-25,000 bricks/hour | 222×106×73mm (standard) | 450-500 kW | 12,000-15,000 m² |
Key Features of Our Clay Brick Production Lines
- Advanced Box Feeder – Ensures consistent clay supply
- Double-Shaft Mixer – Provides homogeneous material blending
- Vacuum Extruder – Removes air pockets for stronger bricks
- Automatic Cutting System – Precise dimensional control
- Energy-Efficient Tunnel Kiln – Optimized firing process
Interested in a Clay Brick Production Line?
Contact our specialists to discuss clay brick production solutions tailored to South African clay compositions.

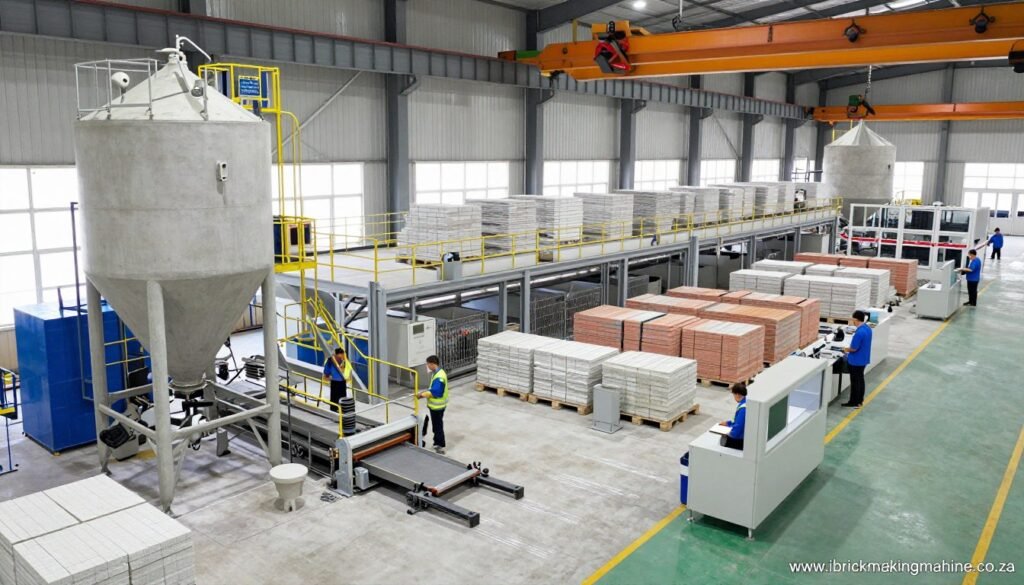

Concrete Brick Production Plant Solutions
MAIKONG’s concrete brick production plants deliver exceptional versatility for manufacturing hollow blocks, solid pavers, and specialized concrete products. Our systems are designed for the demanding South African construction market.
Concrete Production Line Specifications
| Model | Block Production | Paver Production | Cycle Time | Mold Changing |
| MK-QT4-15 | 8,000-10,000 blocks/8hrs | 600-800 m²/8hrs | 15-18 seconds | 15-20 minutes |
| MK-QT6-15 | 12,000-15,000 blocks/8hrs | 900-1,100 m²/8hrs | 15 seconds | 15-20 minutes |
| MK-QT10-15 | 20,000-25,000 blocks/8hrs | 1,400-1,600 m²/8hrs | 15 seconds | 20-25 minutes |
Products Manufactured
- Standard hollow blocks (various sizes)
- Solid concrete bricks
- Interlocking pavers
- Curbstones and kerbstones
- Retaining wall blocks
- Special-shaped decorative blocks
Fully Automatic Brick Making Line Technology
Our fully automatic brick making lines represent the pinnacle of manufacturing technology, incorporating advanced PLC control systems, servo motors, and hydraulic systems for unmatched precision and reliability.
Advanced Automation Features

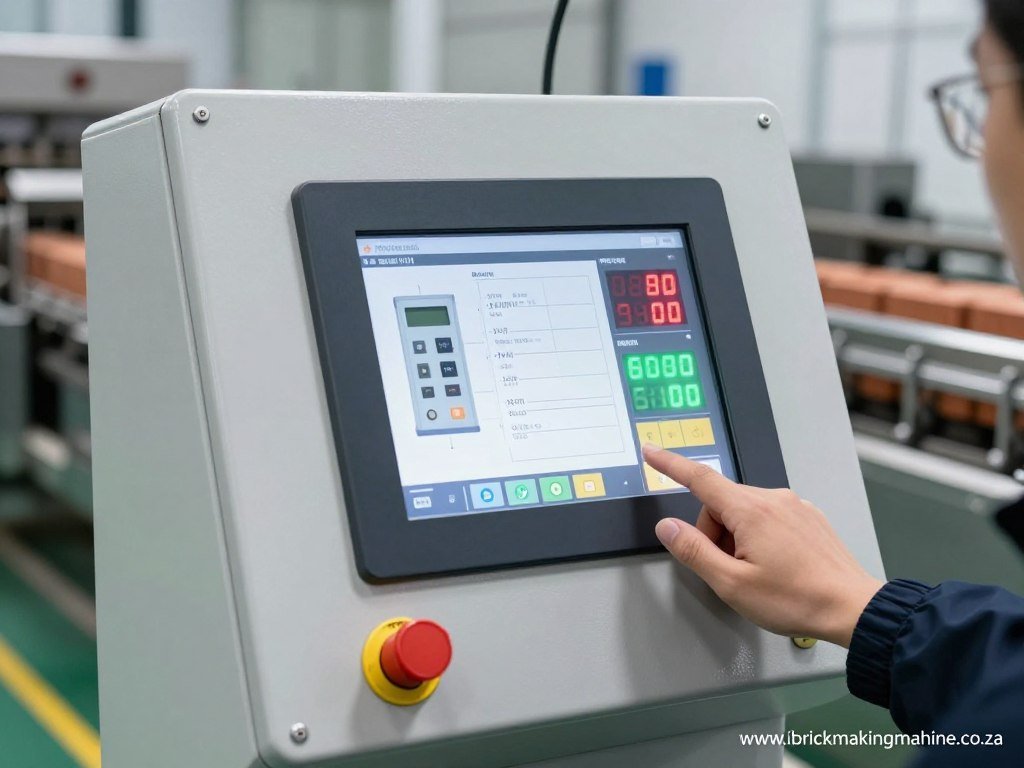

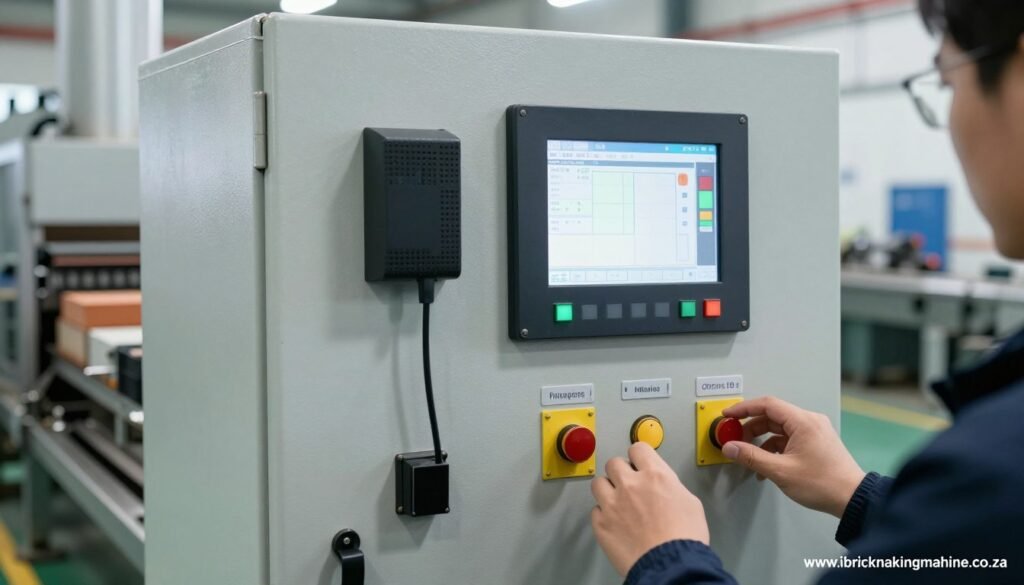

- Siemens PLC Control System – Industry-leading reliability and precision
- Automated Material Handling – Consistent feed rates and proportioning
- Servo-Driven Hydraulics – Precise pressure control for optimal density
- Real-time Production Monitoring – Dashboard with key performance metrics
- Automatic Fault Detection – Rapid identification and resolution of issues
- Remote Diagnostics – Technical support via internet connection
Advantages of Full Automation
- Reduced labor costs (60-70% less manpower required)
- Consistent product quality with minimal variations
- Higher production capacity (up to 3x manual systems)
- Lower material waste through precise proportioning
- Improved workplace safety with automated handling
- 24/7 operation capability with minimal supervision
Considerations
- Higher initial investment than manual systems
- Requires reliable power supply (generator backup recommended)
- Technical staff needed for maintenance
- Larger footprint than basic manual operations
- Training required for operators
Maximize Your Production Efficiency
Our technical team can help you determine the optimal automation level for your specific production needs.
Tailored Solutions for South African Market Needs
MAIKONG understands the unique requirements of South Africa’s construction industry. Our automatic brick production lines are specifically configured to address local challenges and opportunities.
Market-Specific Adaptations
RDP Housing Projects
Our systems are optimized for producing the standard hollow blocks required for South Africa’s Reconstruction and Development Programme housing initiatives, meeting SABS specifications while maximizing production efficiency.
Mining Infrastructure
Heavy-duty brick production lines designed for the demanding requirements of South Africa’s mining sector, producing high-strength blocks for support structures and accommodation facilities.
Rural Cooperatives
Specially configured systems that balance automation with accessibility, ideal for community-based brick manufacturing initiatives in rural areas with simplified maintenance requirements.
Commercial Brick Yards
High-volume production solutions for competitive commercial operations, with emphasis on low cost-per-brick and consistent quality to meet wholesale market demands.
Customization and OEM Services
At MAIKONG, we understand that each brick production operation has unique requirements. Our engineering team offers comprehensive customization services to ensure your production line perfectly matches your specific needs.
Customization Options
- Production Capacity Scaling – Tailored to your volume requirements
- Custom Mold Designs – For specialized brick shapes and sizes
- Material-Specific Adaptations – Optimized for local raw materials
- Space-Constrained Layouts – Efficient designs for limited factory space
- Power Supply Adaptations – Solutions for areas with unreliable electricity
Need a Customized Production Solution?
Our engineering team can develop a brick production line tailored to your specific requirements.
Technical Support and After-Sales Service
MAIKONG provides comprehensive technical support for all our automatic brick production lines. Our commitment to customer success extends well beyond the initial installation.
Our Support Services Include:
- Installation and Commissioning – Expert setup of your production line
- Operator Training – Comprehensive training for your production team
- 24/7 WhatsApp Technical Support – Immediate assistance when needed
- Remote Diagnostics – Online troubleshooting capabilities
- Spare Parts Supply – Quick delivery of genuine components
“The technical support from MAIKONG has been exceptional. Their team helped us optimize our production process and quickly resolved any issues we encountered. The WhatsApp support line gives us peace of mind knowing help is always available.”
Why Choose MAIKONG for Your Automatic Brick Production Line
When investing in an automatic brick production line, choosing the right manufacturing partner is crucial. MAIKONG offers distinct advantages that ensure your investment delivers maximum value.
Superior Manufacturing
Our Shenzhen facility utilizes advanced production equipment and rigorous quality control to ensure every component meets international standards. We source premium materials through China’s world-class supply chain.
South African Market Focus
We’ve developed deep expertise in South Africa’s construction industry requirements, with machines specifically designed for local materials, building standards, and operational conditions.
Comprehensive Support
From initial consultation through installation and ongoing operation, our dedicated team provides responsive support via WhatsApp, email, and on-site visits when needed.
Ready to Transform Your Brick Production?
Contact MAIKONG today to discuss your automatic brick production line requirements.
WhatsApp: +86 135 1090 7401 Email: Lucy@ibrickmakingmachine.co.za
Frequently Asked Questions
What is the typical ROI period for an automatic brick production line?
Most customers achieve return on investment within 12-24 months, depending on production volume, local market prices, and operational efficiency. Our technical team can provide a detailed ROI analysis based on your specific circumstances.
How much space is required for a complete automatic brick production line?
A standard production line requires approximately 3,000-5,000 square meters, including space for raw material storage, production equipment, curing areas, and finished product storage. We can provide customized layouts for space-constrained sites.
What power supply is needed for your automatic brick production lines?
Our standard lines operate on three-phase power (380V/50Hz), with total power requirements ranging from 120kW to 500kW depending on production capacity. We can adapt systems for different power specifications and provide generator recommendations for areas with unreliable electricity.
How long does installation and commissioning take?
Typically, installation and commissioning requires 15-30 days, depending on the complexity of the production line. MAIKONG provides experienced technicians to oversee the entire process and train your staff on operation and maintenance procedures.
Contact MAIKONG for Your Automatic Brick Production Line
Ready to discuss your brick production requirements? Our team is available to provide detailed information, customized quotations, and technical consultations.
Contact Information
- WhatsApp Technical Support: +86 135 1090 7401
- Email: Lucy@ibrickmakingmachine.co.za
- Website: https://ibrickmakingmachine.co.za
Request a Detailed Quotation
Tell us about your project requirements and we’ll provide a comprehensive proposal tailored to your needs.
Transform Your Brick Manufacturing with MAIKONG
Investing in a MAIKONG automatic brick production line means choosing reliability, efficiency, and expert support. Our systems are designed to meet the specific needs of South Africa’s construction industry, with the perfect balance of advanced technology and practical durability.
From commercial brick yards to government housing projects, mining infrastructure to rural cooperatives, we have the right solution for your brick manufacturing requirements. Contact us today to begin your journey toward more efficient, profitable brick production.
Take the Next Step
Contact our team to discuss your automatic brick production line requirements.
WhatsApp: +86 135 1090 7401 Email: Lucy@ibrickmakingmachine.co.za View Our Factory

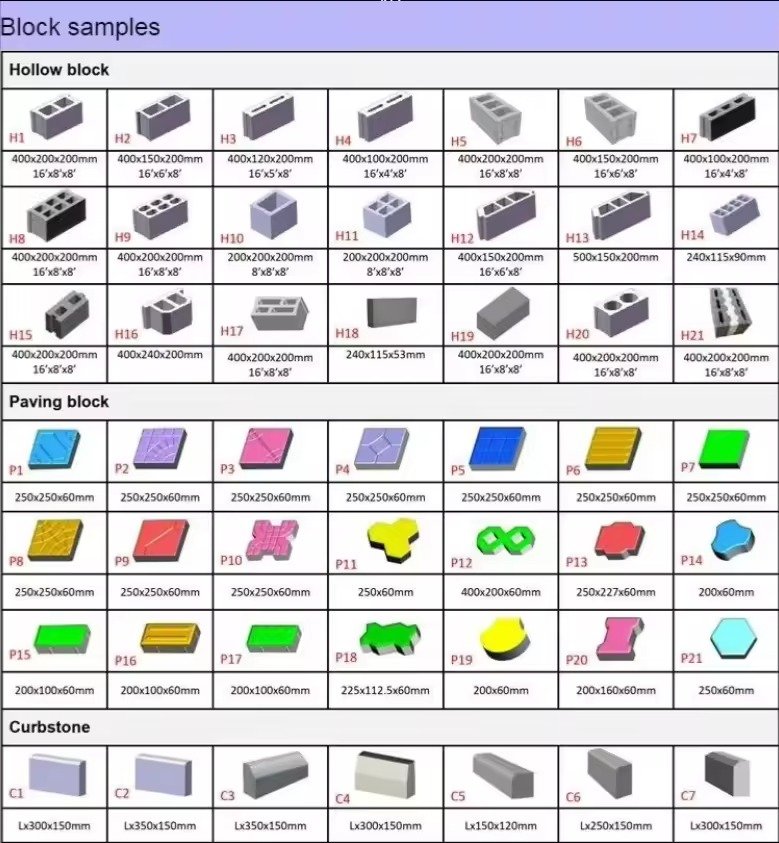

Block samples
